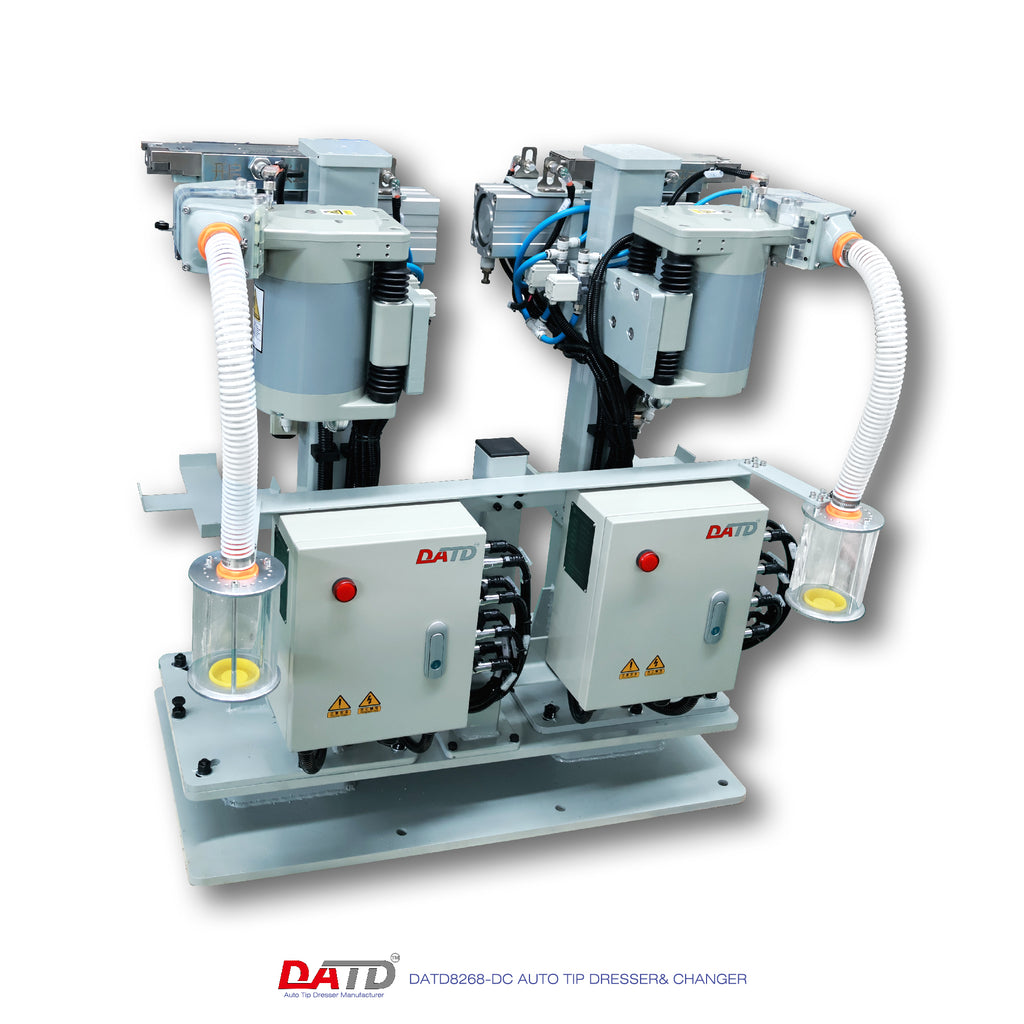

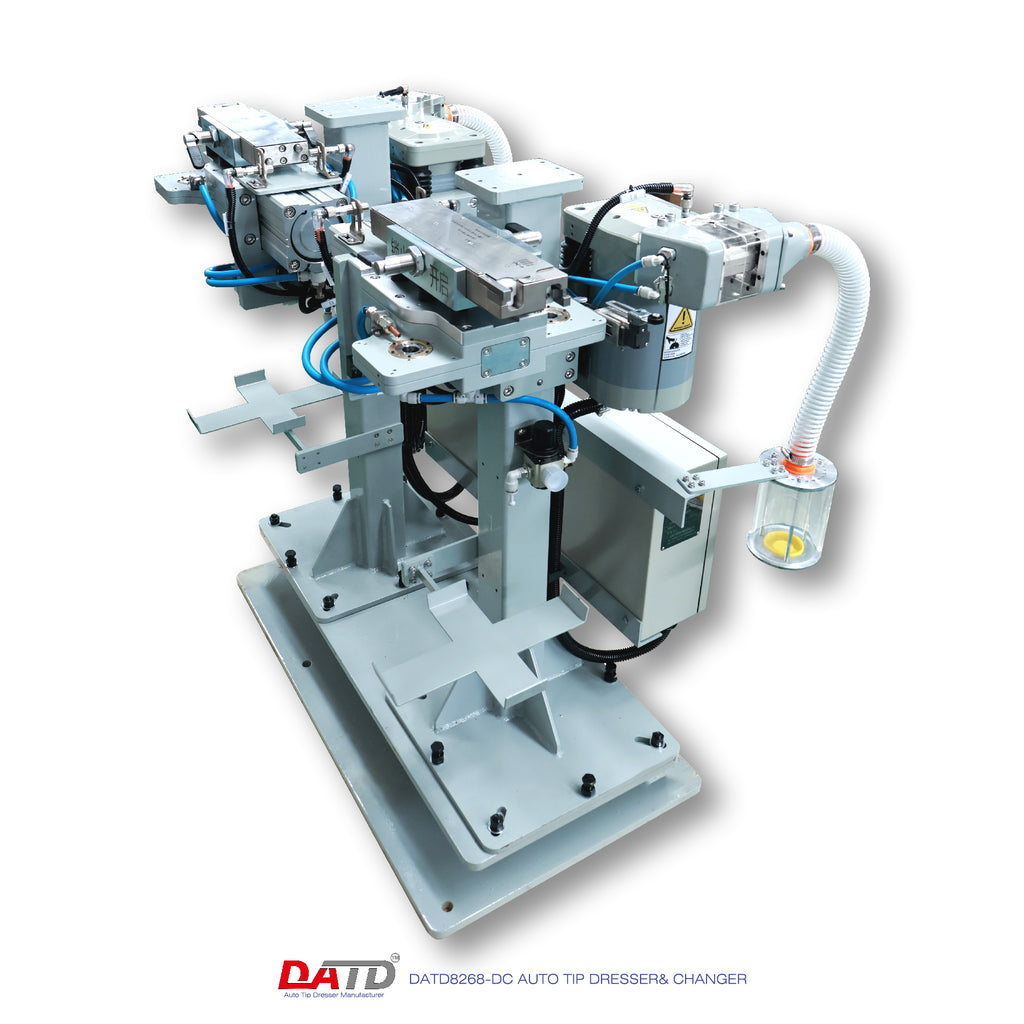

DATD Combo Set – Automatic Tip Dresser & Tip Changer

Two Functions. One Integrated Solution. Greater Production Efficiency.

The DATD Combo Set integrates automatic electrode cap dressing and electrode cap changing into one compact, coordinated system. Designed for robotic resistance spot-welding applications, especially automotive Body-in-White (BIW) production lines, it automates two essential electrode maintenance operations to help improve production efficiency and reduce manual intervention.

By combining an automatic tip dresser and an automatic electrode cap changer, the DATD Combo Set enables robots to perform electrode cap dressing and replacement within an integrated maintenance solution. This design helps optimize equipment layout, simplify system integration, and support continuous, reliable welding production.

Key Features

• 2-in-1 Integrated Solution: Combines automatic electrode cap dressing and automatic electrode cap changing in one system.

• Efficient Maintenance Cycle: Typical dressing cycle of 3–5 seconds and electrode cap changing cycle of 15–30 seconds, depending on the configuration and operating conditions.

• Compact System Design: Integrates two essential electrode maintenance functions to help optimize installation space.

• Automated Cap Replacement: Automatically removes worn electrode caps and installs new ones, reducing manual maintenance.

• Consistent Dressing Performance: Helps restore the required electrode cap geometry and maintain stable welding conditions.

• Flexible System Integration: Designed for integration with robotic spot-welding systems and customized production-line configurations.

• Customized Solutions: Configurations can be adapted to customer requirements, robotic welding guns, and production-line layouts.

Typical Applications

• Automotive Body-in-White (BIW) production lines

• Robotic resistance spot-welding stations

• Automated automotive body assembly

• High-volume manufacturing requiring automated electrode cap maintenance

Benefits for Your Production Line

• Improved Efficiency: Combines dressing and cap replacement in one integrated solution.

• Reduced Manual Intervention: Automates routine electrode cap maintenance operations.

• Optimized Installation Space: Integrates two functions into a coordinated system.

• Consistent Welding Conditions: Supports repeatable electrode maintenance and reliable production quality.

• Simplified Automation: Helps streamline robot programming and production-line integration, subject to the system configuration.

Why Choose DATD?

As a manufacturer of automatic tip dressers and robotic welding peripherals, DATD provides practical and customizable electrode cap management solutions for automated manufacturing. The DATD Combo Set offers an integrated approach to electrode dressing and replacement, helping customers improve maintenance efficiency and optimize robotic welding operations.

DATD — Integrated Electrode Cap Management for Smarter Welding Automation.
